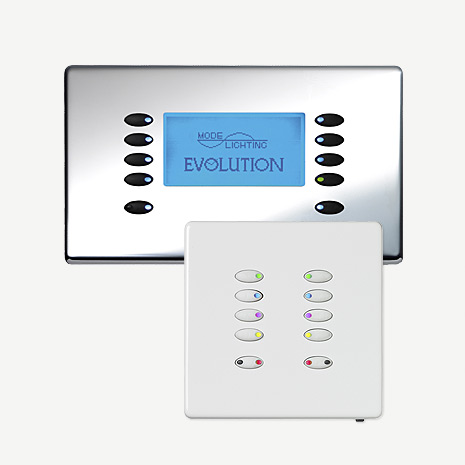

The 10 Button Control Plate provides eight configurable buttons allowing scene recall, impulse and toggle and two multifunction buttons providing On & Raise and Off & Lower with integral IR receiver. All buttons have integral RGB LED’s.
The indicator LED’s within the buttons are RGB and dimmable, therefore seven colours of selectable intensity are available. Where buttons have a multifunction i.e. Toggle On & Off, the LED colour can toggle, say Green & Red to provide current status.
The Control Plates are connected to an Area Controller via the M-BUS network cable. The M-BUS provides the means of SELV communication between the Area Controller to Lighting Controllers and Control Devices
